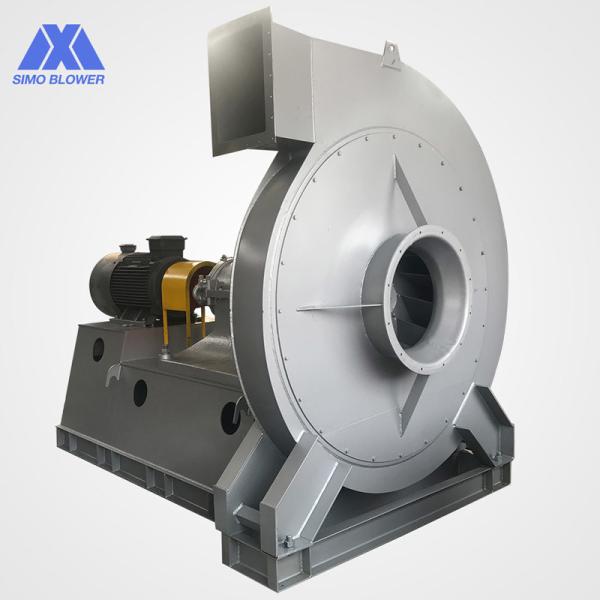

HG785 Alloyed Steel High Pressure Centrifugal Fan Induced Draft
Introduction
The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
The impeller is made of 12 sloped wing beveled blades, arc-conical front plate and flat-shaped rear plate welded together. The material is made of heat-resistant stainless steel. Impeller dynamic and static balance and overspeed test.
Detail introduction
The outlet position of the fan is represented as "left" by the outlet Angle of the housing, and "right" can be made into five angles: 0°, 45° 90°, 135°180°.The new shaft and coupling technology ensuring the accuracy during the assembly process while maintaining high reliability.All our machines underwent vibration tests prior leaving the factory in order to achieve reliable and durable operation.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 9-10 | 8D | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9D | 1450 | 4101～4597 | 4695～10717 | 15～22 |
| 10D | 1450 | 4958～5840 | 6440～15455 | 30～37 |
| 11.2D | 960～1450 | 2705～7364 | 5990～21713 | 15～75 |
| 12.5D | 960～1450 | 3975～9229 | 8327～30186 | 22～110 |
| 14D | 960～1450 | 4249～11668 | 11699～42409 | 37～220 |
| 16D | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
Product Features
The fan shall be single-inlet with steel backward curved centrifugal wheel. The drive type shall be direct drive, coupling drive and belt drive. Structure of the fan shall be undone easily for maintenance and cleaning.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
