Brand Name : SIMO BLOWER
Model Number : 7-08
Certification : CE/ISO9001/ISO45001
Place of Origin : China
MOQ : ≥1 set
Price : $500-1,0000.00/set
Payment Terms : L/C, T/T
Supply Ability : 300sets 30days
Delivery Time : 35days (To be negotiated)
Packaging Details : 1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement
Product Name : 7-08 Series Small Flow Medium Pressure Centrifugal Fan Blower
Pressure : Medium Pressure
Blade Material : Stainless Steel
Category : Blower Fan
Voltage : 380V/50Hz/60Hz
Impeller Diameter : 400-3500mm
Electric Current Type : AC
Speed : ≤3000rpm
Motor : Chinese Famous Brand, ABB, Siemens, Weg Etc
Bearing Cooling : Air Cooling Or Circulating Water Cooling
Drive : Direct Driven, Coupling Driven, Belt Driven
Bearing Type : Rolling Bearing
Warranty : 1year
Customized Support : ODM OEM OBM
HS Code : 4107960701
Keywords : Blower,centrifugal fan,centrifugal Blower,edium Pressure Centrifugal Fan
7-08 Series Small Flow Medium Pressure Centrifugal Fan Blower
7-08 Series Small Flow Medium Pressure Centrifugal Fan Blower is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
7-08 Series Small Flow Medium Pressure Centrifugal Fan Blower | |||
Performance | Pressure range | 3215-27349 | Pa |
Air flow range | 1049-33030 | m3/h | |
Impeller diameter | 400-3500 | mm | |
Speed | ≤3000 | rpm | |
Material | Blower fan casing | Q235, Q345, stainless steel | Design as special |
Blower fan shaft | 45# steel, Q304, SS304,SS316L | ||
Blower fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
Medium | 10---120 | Dustiness<80 g/m3 | incombustible |
Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
Optional components | System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
Pursue excellent quality, make perfect product!
![]() |

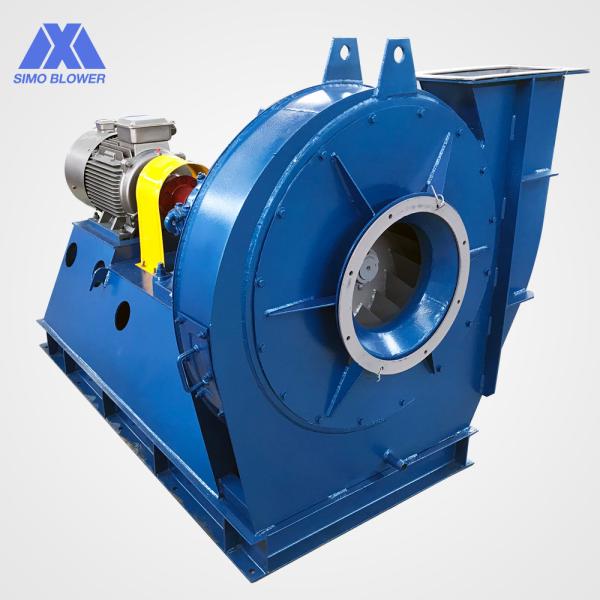

7-08 Series Small Flow Medium Pressure Centrifugal Fan Blower Images |
