The following data represents only part of our product performance. If you cannot find the specifications you need, please send us your performance requirements for customized design service.
| Series no. | 4-10 series | Feature selection |
|---|
| Performance | Impeller diameter | 400-3000mm |
| Rotation speed | ≤4000rpm |
| Pressure range | 615-8302Pa |
| Flow range | 10696-952530m³/h |

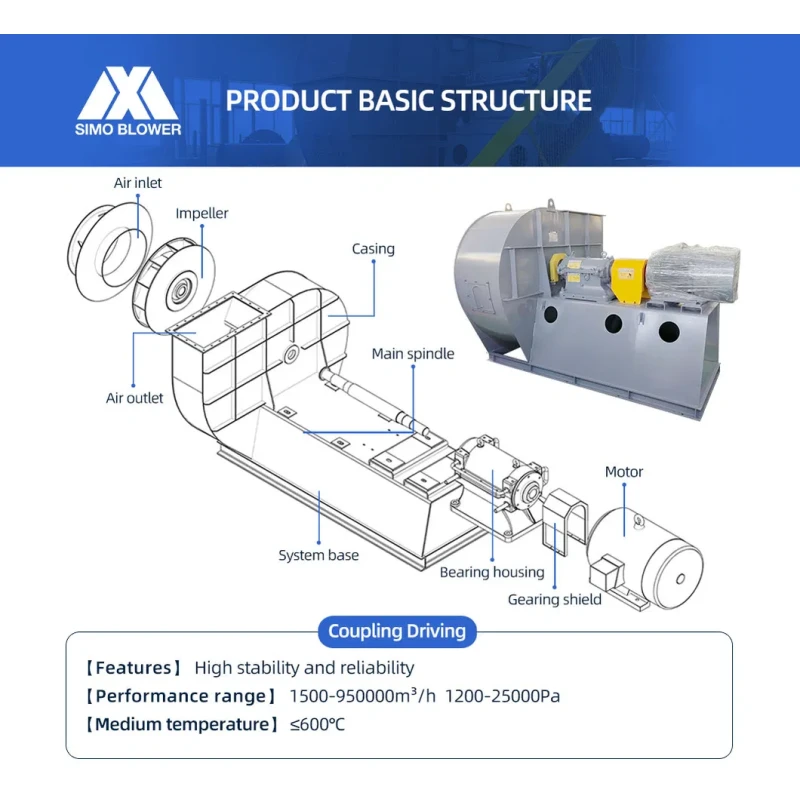

| Structure | Blade type | Backward, Straight, Aerofoil type |
| Impeller support | SWSI (Single Width, Single Inlet), DWDI (Double Width, Double Inlet), Overhung type |
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified) |
| Cooling method | Air cooling, Water cooling, Oil cooling (Can be specified) | |
| Driven mode | Direct driven, Coupling driven, Belt driven (Can be specified) | |
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250ºC | Customer request |
| Gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas |
| System configuration | Motor brand | Chinese famous brand, ABB, WEG etc (Can be specified) |
| Material Options | Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy (Can be specified) |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) |
| Main shaft | High strength carbon steel, Alloy structural steel (Can be specified) |
| Bearing | ZWZ, SKF, FAG, NSK (Can be specified) |
| Bearing housing | Cast iron | |
| Foundation bolts | GB799-1988 | |
| Optional Parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. |
